Combine-X
expansion joints

Combine-X <br/>
expansion joints For a larger view, please mouseover the image.
For a larger view, please mouseover the image.

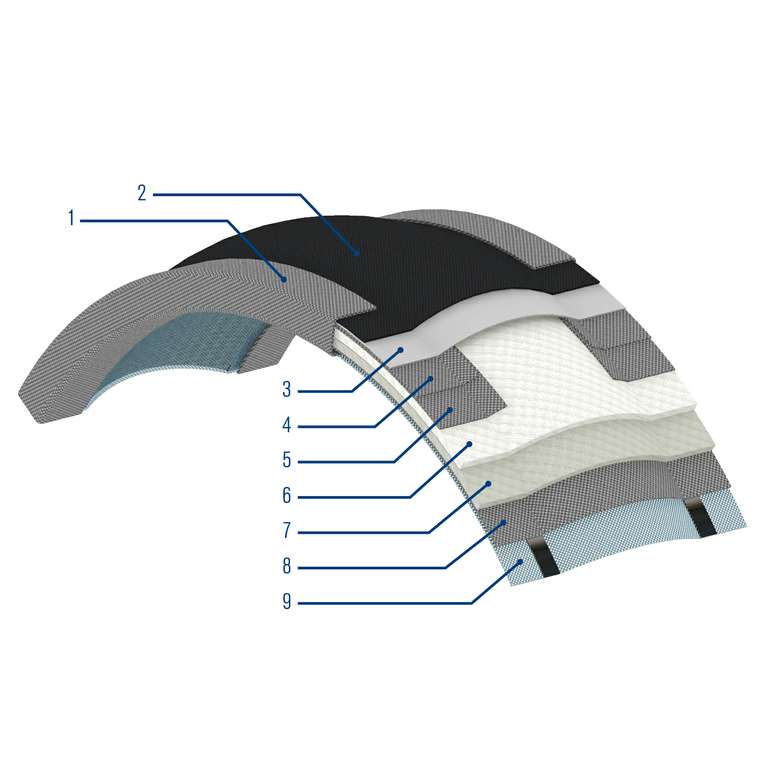

Item Description
1 Flange reinforcement
2 Pressure carrying layer
3 Gas seal layer
4, 5 Insulation strips
6, 7 Insulation layer
8 Support layer
9 Mechanical reinforcement
  • Multi layer design
  • Compensates for movements in several directions simultaneously
  • Excellent form stability
  • Can be delivered as fabric only or as preassembled unit
  • Custom made to fit actual working conditions
  • Specifically designed for gas turbine systems
  • Highly flexible
  • High chemical resistance
  • High flutter resistance
  • Reduce heat loss
  • Low reaction forces
  • Good resistance against abrasion
  • Suitable for high temperature applications
Temperature:
-35 °C … +650 °C (-31 °F ... +1,202 °F)
Pressure:
-0.14 bar … 0.07 bar (-2.03 PSI ... 1.02 PSI)
Maximal axial movements: … 160 mm (6 1/2”)
Maximal lateral movements: … 80 mm (3”)
Documentation:
- EN 10204-2.2 certificate
- Safety Data Sheets (SDS) for individual materials
  • Oil and gas industry
  • Power plant technology
  • Gas turbine exhausts
  • Bypass channels
  • HRSG inlets
Combine-X expansion joints safely absorb thermal expansion and misalignments of pipe and duct systems in dry, high temperature and high velocity area. Combine-X products compensate for movements in multiple directions simultaneously.
