Fluaflex
expansion joints

Fluaflex <br/>
expansion joints For a larger view, please mouseover the image.
For a larger view, please mouseover the image.

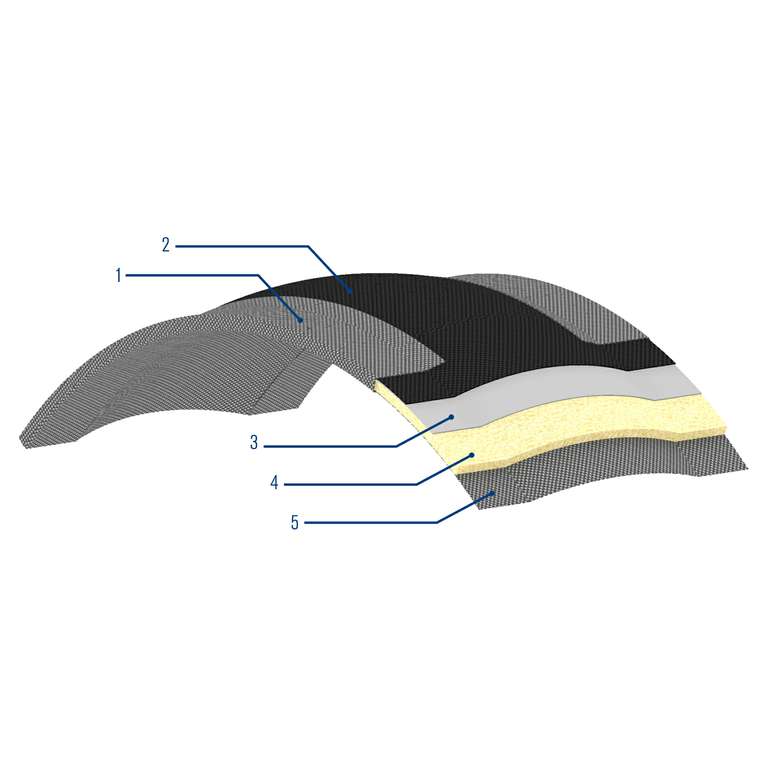

Item Description
1 Flange reinforcement
2 Pressure carrying layer
3 Gas seal layer
4 Insulation layer
5 Support layer
  • Multi layer design
  • Compensates for movements in several directions simultaneously
  • Can be delivered as fabric only or as preassembled unit
  • For dry condition
  • Custom made to fit actual working conditions
  • Excellent flexibility
  • High chemical resistance
  • Reduced heat loss
  • Minimal reaction forces
Temperature:
-35 °C … +575 °C (-31 °F ... +1,067 °F)
Pressure:
-0.2 bar … 0.2 bar (-2.9 PSI ... 2.9 PSI)
Maximal axial movements: … 200 mm (8”)
Maximal lateral movements: … 80 mm (3”)
Documentation:
- EN 10204-2.2 certificate
- Safety Data Sheets (SDS) for individual materials
  • Process industry
  • Oil and gas industry
  • Refining technology
  • Power plant technology
  • Pulp and paper industry
  • Metal production and processing
  • Cement industry
  • Flue gas duct systems
  • Boiler inlets and boiler outlets
  • Penetration seals
  • Process lines
  • Stack connections
Fluaflex expansion joints safely absorb thermal expansion and misalignments in pipe and duct systems in dry and medium temperature areas. Fluaflex products compensate for movements in multiple directions simultaneously.
