Item Description

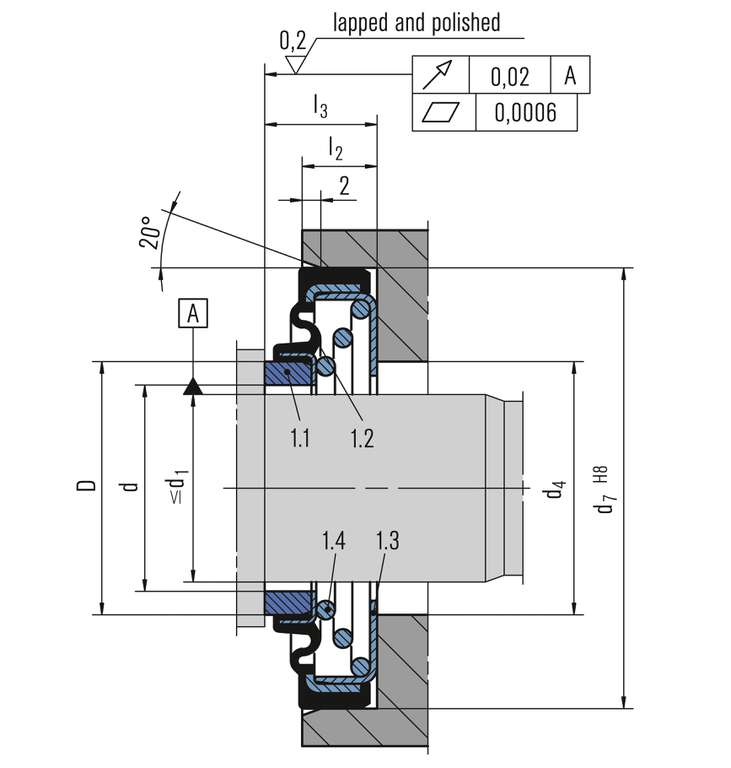

1 Seal unit
1.1 Seal ring
1.2 Bellows
1.3 Profiled sheet
1.4 Spring

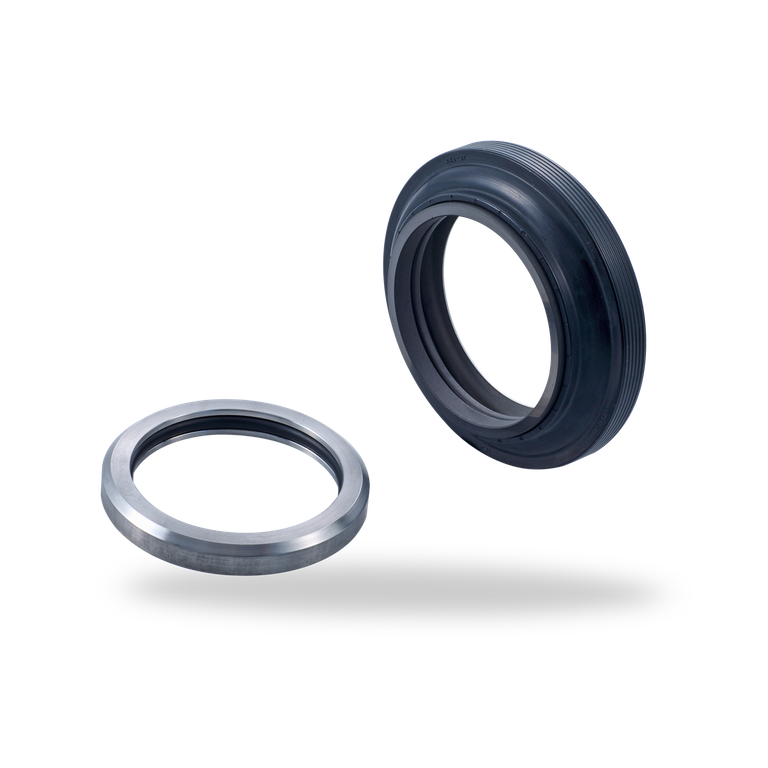

AX05

Features

  • Unbalanced
  • Independent on direction of rotation

Advantages

  • Stationary springs
  • Low space requirements
  • Frictionally torque transmission
  • Springs protected from the product
  • Simple mounting

Operating range

Shaft diameter: d1 = … 65 mm (2.56")
Pressure: p1 = 0.3 bar (4.35 PSI)
Temperature:
t = -20 °C … 100 °C (-4 °F … 212 °F)
Sliding velocity: vg = 10 m/s (33 ft/s)

Materials

Seal face: Carbon graphite resin impregnated (B)
Secondary seals: NBR (P)
Springs: CrNi steel (F)
Metal parts: CrNi steel (F)

Similar products

BT-A2

  • Rubber bellows mechanical seal
  • Unbalanced
  • Single spring
  • Independent of direction of rotation
  • Stationary design

BT-AR

  • Rubber bellows mechanical seal
  • Unbalanced
  • Single spring
  • Independent of direction of rotation
  • Short axial installation length

BT-PN

  • Rubber bellows mechanical seals
  • Unbalanced
  • Single spring
  • Independent of direction of rotation
