Buratex R 4002

Buratex R 4002

Buratex R 4002

Features

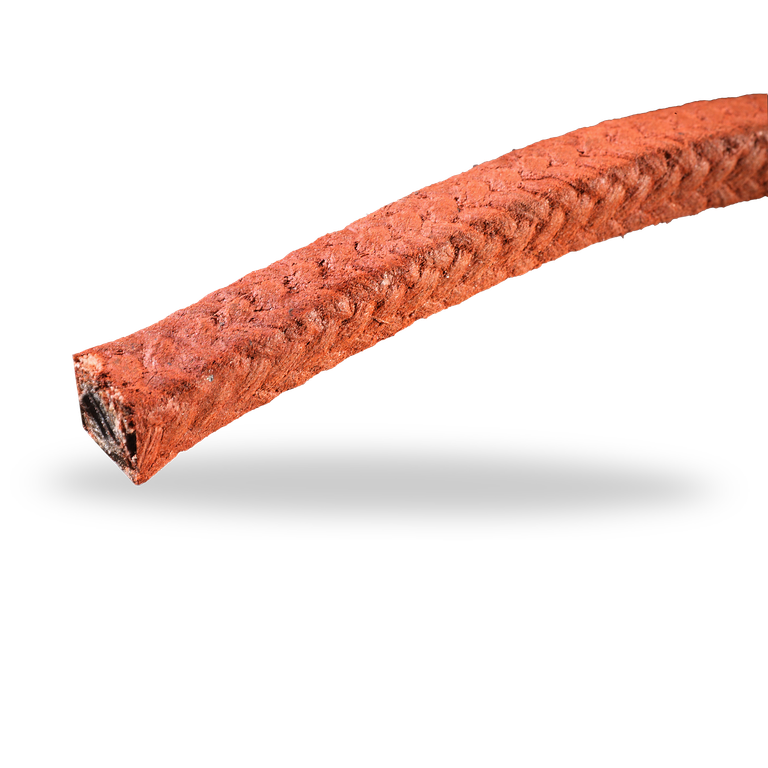

Buratex B 4002 is a flexible cotton packing impregnated with a special sea water-resistant impregnating agent, which makes it THE packing for marine applications. When it is manufactured, particularly tear-resistant cotton threads are pre-impregnated and twisted. At the next diagonal braiding step, the packing is further treated with a sea water-resistant and reddyed impregnating agent.

Advantages

  • Easy to handle
  • Special red impregnating agent is unmistakeable
  • Rot-resistant
  • Permanently soft and flexible

Operating range

Pumps
Pressure: p = 10 bar
Sliding velocity: vg = 10 m/s
Valves
Pressure: p = 60 bar
Sliding velocity: vg = 2 m/s
Mixers, agitators, kneaders, filters
Pressure: p = 8 bar
Sliding velocity: vg = 2 m/s

Temperature
  • Continuous operation:
    t = -20 °C … +100 °C

Chemical resistance:
pH = 6 ... 8
Resistant to water, waste water and sea water.

Notes

In pump applications, ideally fitted with a straight cut.

Forms of supply

  • Sold by length, blank cuts, precompressed rings with straight or slanted cut
  • Box contents
    up to 6,35 mm: 1 kg
    7 - 10 mm: 2 kg
    11 - 13 mm: 3 kg
    14 - 24 mm: 5 kg
    from 25 mm: 10 kg
