MAF203 Magnetic filter
MAF203 Magnetic filter

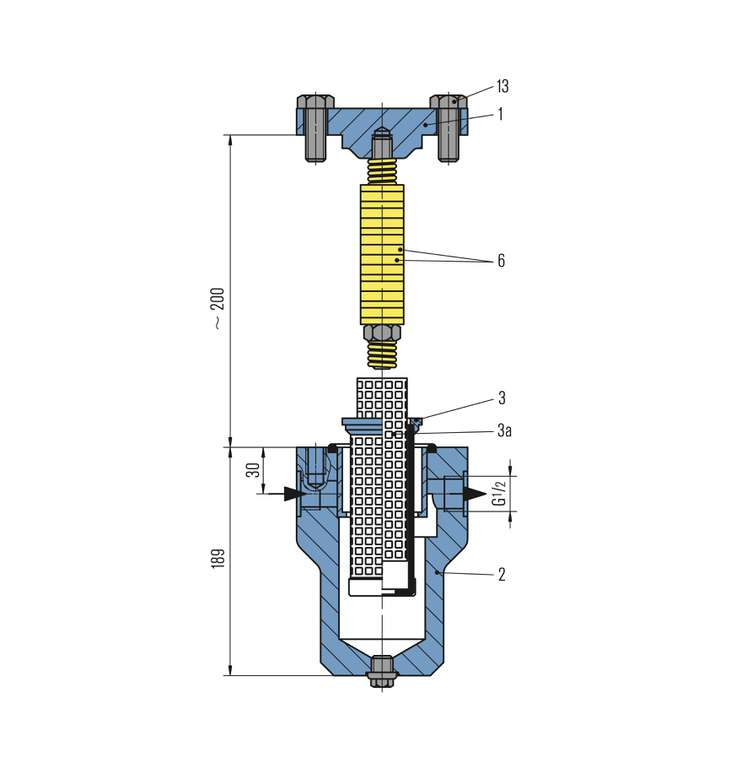

| Item | Description |
| 1 | Cover |
| 2 | Filter Cover |
| 3 | Sleeve |
| 3a | Internal mesh |
| 6 | Ring magnet |
| 13 | Hex screw |

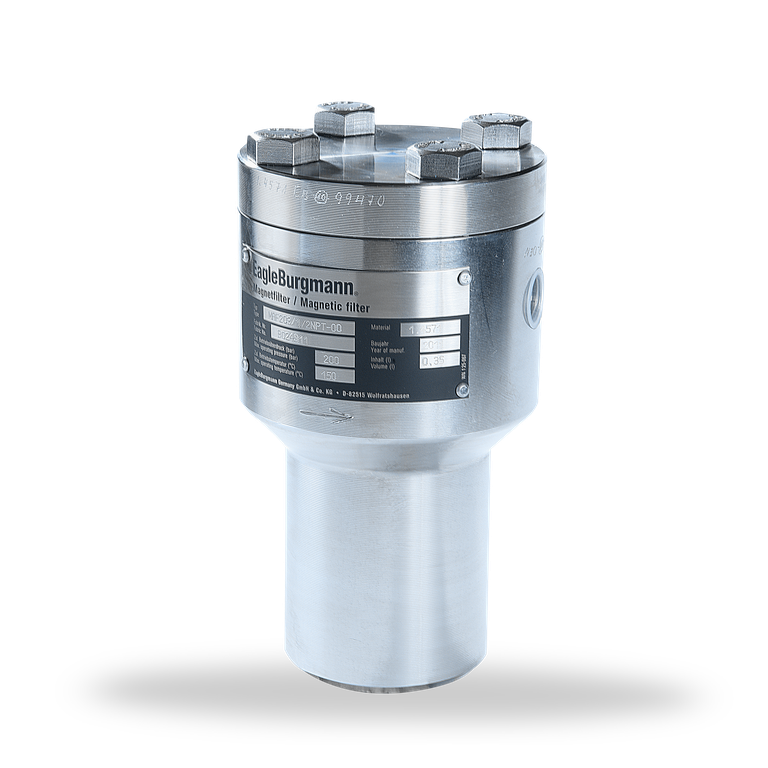

MAF203 Magnetic filter
Features
Magnetic filters of the MAF203 range are inline filters for installation inside pipelines. The combination of magnetic rod and filter element guarantees a high level of efficiency. Magnetic filters are used in seal supply systems and any other such systems in which a liquid has to be cleaned of magnetic and non-magnetic impurities up to a certain size.
Advantages
- For operating pressures of up to 200 bar
- Combination device: magnetic filter and filter element in one
- Internal mesh to protect the filter element for reverse currents
- Housing can be dismantled: simple maintenance and cleaning
- Magnetic rod is of short overall height when dismantled: low space requirements for maintenance work
- Two types of contamination indicator are available as accessories: visual monitoring and/or in combination with an electric contact
Recommended applications
- Petrochemical industry
- Chemical industry
- Power plant technology
- Refining technology
- Oil and gas industry
Functional description
The magnetic rod is positioned in the filter in such a way that it catches magnetic particles flowing past in the water on all sides. Partial coarse filtration is provided by the incorporated filter element.
Pressure loss:
10 mbar@ 10 l/min (0.15 psi @ 2.5 GPM)
55 mbar @ 25 l/min (0.8 psi @ 6.5 GPM)
Pressure loss:
10 mbar@ 10 l/min (0.15 psi @ 2.5 GPM)
55 mbar @ 25 l/min (0.8 psi @ 6.5 GPM)
Product variants
| Designation | Process connections |
Allowable pressure | Allowable temperature | Filter grade | Weight (approx.) | Housing | Filter cartridge1) | Gasket | |
|---|---|---|---|---|---|---|---|---|---|
| MAF203/G1/2-00 | G 1/2" | 200 bar (2,901 PSI) |
150 °C (302 °F) |
50 µm | 10.5 kg (23 lb) |
1.4571 | 1.4401 | Viton® | T2 |
| MAF203/G3/4-00 | G 3/4" | 200 bar (2,901 PSI) |
150 °C (302 °F) |
50 µm | 10.5 kg (23 lb) |
1.4571 | 1.4401 | Viton® | T2 |
| MAF203/G1-00 | G 1" | 200 bar (2,901 PSI) |
150 °C (302 °F) |
50 µm | 10.5 kg (23 lb) |
1.4571 | 1.4401 | Viton® | T2 |
| MAF203/1/2NPT-00 | 1/2 NPT | 200 bar (2,900 PSI) |
150 °C (302 °F) |
50 µm | 10.5 kg (23 lb) |
1.4571 | 1.4401 | Viton® | T2 |
| MAF203/3/4NPT-00 | 3/4 NPT | 200 bar (2,900 PSI) |
150 °C (302 °F) |
50 µm | 10.5 kg (23 lb) |
1.4571 | 1.4401 | Viton® | T2 |
| MAF203/1NPT-00 | 1 NPT | 200 bar (2,900 PSI) |
150 °C (302 °F) |
50 µm | 10.5 kg (23 lb) |
1.4571 | 1.4401 | Viton® | T2 |
1) Other materials on request.
